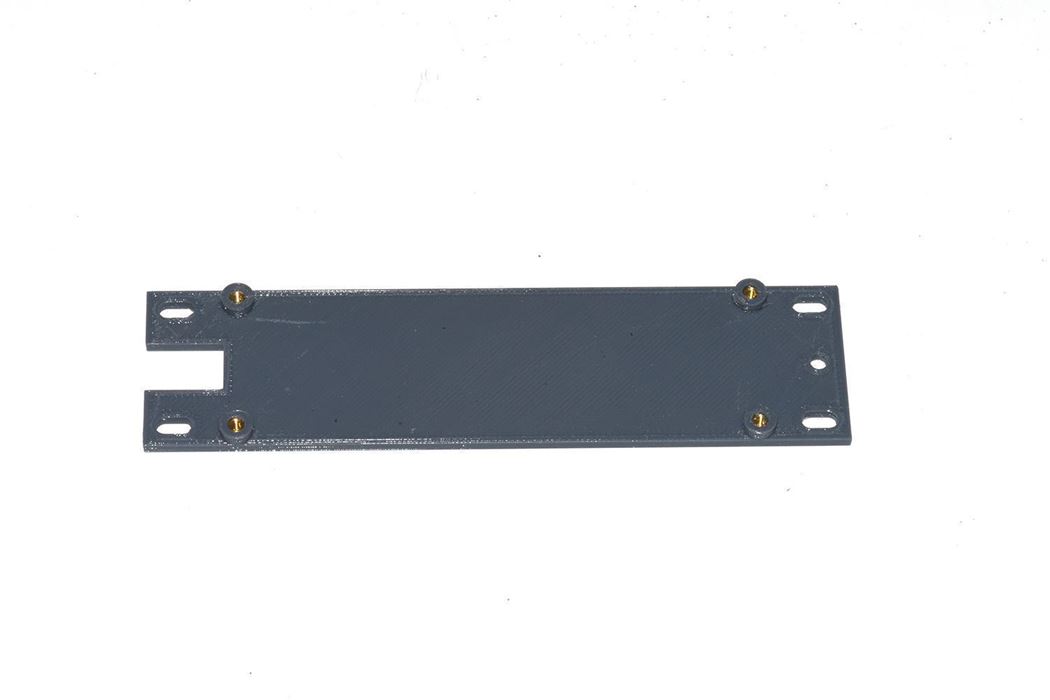

Standard Length EggTimer TRS Platform Kit

The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.

Be the first to review this product

Manufacturer: SMT Designs

SKU: DPLT-25491

Shipping date: 5 - 40 days depending on order size

$3.25

The standard platform size was created to be able to make a complete 38mm modular bay that would fit into a standard eight inch long coupler tube. The platforms are also compatible with SMT Designs' 54mm product line and can be used as a standard mounting for devices in traditional electronic bay designs.

Note: The EggFinder TRS and the Marsa33 platforms will not fit into a thick walled 38mm coupler tube.

Contents

device platform
four 3/8" 4-40 machine screws
four #4 internal lock washers
two/three/four 3/16" 2-56 machine screws with #2 internal lock washers
two tie wraps

Specifications

Length 131.6mm
Depth 34mm
Height 7mm
Weight approximately 19.5g but will vary greatly depending on selected device
Uses 131.6mm of bay length

Sled Wiring Documentation
