Standalone Modular Nosecone Bay Kits
The Standalone Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).
Shipping date: 5 - 40 days depending on order size
- *
- *
Note: This is not an all encompassing list. Manufacturers do change their
products, add new materials, and can be different between sizes of tubing.
Please measure to assure a proper fit.
Thin Wall (select if wall thickness is 1.1mm or under)
Mach1 BT55, BT60 - 1.1mm
Normal Wall (select if wall thickness is over 1.1mm
and 1.6mm or under)
Blue Tube 2.0 - 1.6mm
LOC Cardboard - 1.52mm
PML Phenolic - 1.5mm
Thick Wall (select if wall thickness is over 1.6mm
and 2.1mm or under)
MadCow - 1.9mm
Rocketry Warehouse (Proline) - 2.1mm
Ultra Thick Wall (select if wall thickness is over
2.1mm and 2.6mm or under)
LOC (larger tubes) - 2.6mm
- *
- *
- *
- *
- *
- *
- *
- *
Kevlar cord loop good to 200 pounds
Eye Bolt good to 500 pounds
The Standalone Modular Nosecone Bay Kit is a complete set of SMT Designs parts that can be assembled into a fully functional module for the supported devices and batteries listed (customer supplies device and battery).

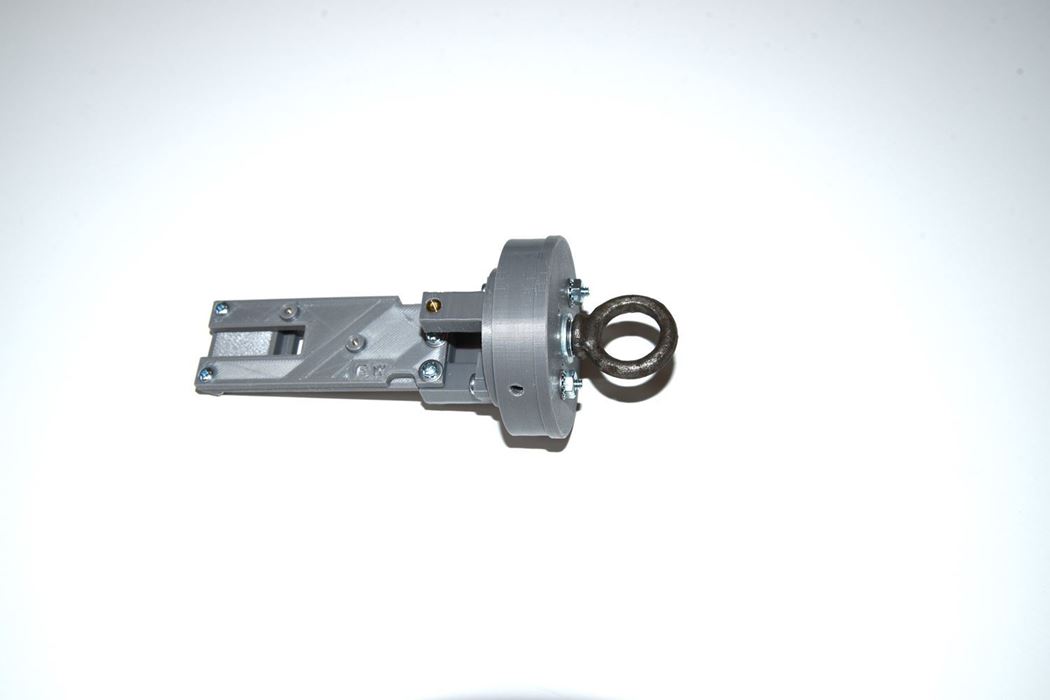

The bay is designed for larger rockets 54mm and up. The common module consists of a base with an arming switch, a platform bracket, and an integral 1-4-20 insert for mounting or as an eye bolt attachment. The base can be end mounted with 1/4-20 or 6-32 hardware on a bulkhead or used with optional adapters that fit 54, 65, 75, and 98mm nosecones.
The standalone bay supports all devices such as the MissileWorks T3 & RTx, EggTimer EggFinder Mini & TX, FeatherWeight GPS and AltusMetrum products.
Mounting to the nosecone shoulder is accomplished by three 4-40 threaded inserts at 120 spacing around the perimeter of the base module (the 98mm bay uses 8-32 hardware for added strength). An end accessible arming screw is used to power the device on and off.
The bay platforms come in three lengths, so that a bay can be made as short as possible given a specific device. The bay length can be set ot Auto, Short, Medium or Long when ordering. Auto will set the length to whatever is the shortest platform for the selected device. Forcing it to Short does limit the devices that can be supported. Medium will support more devices and finally, long will support all devices. The platform length will set the battery holder types that can be supported.
What this all means is that the long platform supports everything and would allow upgrades later to any additional supported devices or batteries. The short and medium platforms don't support as many options for changing later.
Contents
- one end mountable switch base and platform bracket
- selected device platform for the device
- selected battery carrier and cables
- optional eye bolt attachment
- optional adapters
- wire and all necessary hardware to assemble the bay
Customer Supplied Parts
- One supported nosecone
- One device
- One battery
Additional adapters are available in the Bay Components under Modular Nosecone Adapters.
