Device and Battery Support for Electronic Bays
Pardon our dust - this category is going through an evolution. Presently, device carriers, battery carriers, and hybrid device platforms are done (minus lots of pictures to be added). The rest of the platfoms will be completed as time allows.
Thank you for your patience and please call when you have any questions!
The platforms and carriers you find here have all been designed to have a consistent footprint and wiring manner. If there is a specific device, altimeter, or battery that you need for your project and it is not here, please contact us and we will make a platform or carrier for you in either one of our usual lengths or a custom one.
Highlights
- Device platforms come in a variety of lengths. There is a set of six lengths and are compatible with the modular bay parts
- compact - 78mm
- short - 85mm
- medium - 115mm
- standard - 131.5mm
- hybrid - 141mm - this platform is designed to take up one side of the hybrid tray used in our 54mm - 98mm hybrid bay products.
- long - 150mm
- Device carriers fit a single module slot in our BT60 and hybrid bay product lines. The carriers are used for both smaller electronic devices (e.g. RRc2+) and batteries including a variety pf LiPos and of course, the standard 9 volt cell that is used.
- Custom device platforms can be made up to 8" long and 4.25" in width - contact us
- All platform and carrier kits come with all the necessary mounting screws, tie wraps, and device mounting hardware (where applicable). Also, battery carriers will also include a connector cable for the battery that the carrier is used with.

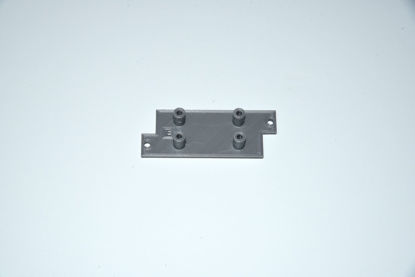

Hybrid Bay Device Carrier Kits
HDC-BTDC
The Hybrid Bay Device carriers are used to mount smaller electronic devices (RRC2+ sized) in SMT Designs hybrid bays and bay adapters. Of note, the device carriers can be used as small footprint device mounts for more traditional bay designs or coupled with SMT Designs' bay adapters for even more versatility.
$2.95
Hybrid Bay Battery Carrier Kits
BYC
The Hybrid Bay Battery carriers are used to hold smaller batteries (9 V sized and select LiPos) in SMT Designs hybrid bays or bay adapters.
$3.45
Hybrid Bay Device Platform Kits
HDP
Device platforms are used to typically mount larger electronic devices (RRC3 sized) in SMT Designs hybrid bays. Of note, they can also be used as device mounts for a more traditional bay designs.
$3.45
Compact Length Device Platform Kits
DPLT-XX191
The compact length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
From $2.45

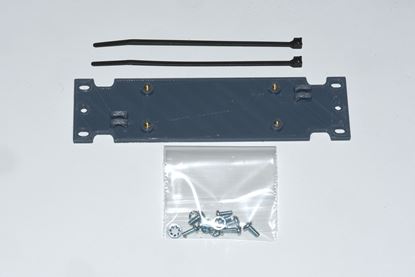

Standard Length Device Platform Kits
DPLT-XX491
The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
From $3.25
FeatherWeight GPS/Raven4 Nosecone Device Platform Kit
DPLT-34791
The FeatherWeight GPS/Raven4 Nosecone Device Platform Kit contains a device platform that will accomodate both a FeatherWeight GPS tracker and Raven4 altimeter.
$3.45

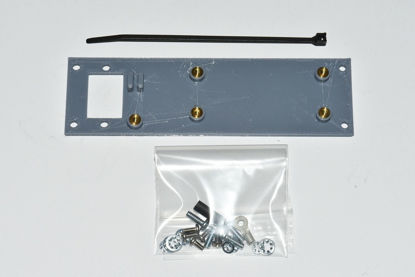

Medium Length ADEPT22 Platform Kit
SLAD22-01140
This is a medium length platform for the ADEPT22 dual deployment altimeter that includes a DE-9 connector cutout
$2.95
Compact Length EasyMini Device Platform Kit
DPLT-10191
This is a compact length device platform for the AltusMetrum EasyMini dual deployment altimeter. There is an optional battery holder available that can be added that sits underneath the platform.
$2.45

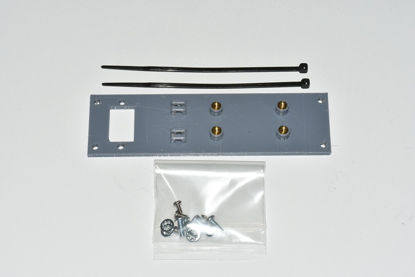

Medium Length EasyMini Platform Kit
SLAMEM-01142
This is a medium length platform for the Altus Metrum EasyMini dual deployment altimeter that includes a DE-9 connector cutout.
$2.95
Standard Length Adept ADEPT22 Platform Kit
DPLT-90491
The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
$3.25
Standard Length AltusMetrum EasyMini Platform Kit
DPLT-10491
The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
$3.25
Standard Length AltusMetrum TeleMetrum Platform Kit
DPLT-11491
The standard length platform size is available to support many different devices. There are optional battery holders that sit underneath the platform depending on the selected device - please contact SMT Designs.
$3.25
