Short Length Generic Sled Kit

This is a short length sled that has no dedicated mounting for any device.

SKU: SLG-00143

Shipping date: 5 - 40 days depending on order size

$1.95

This is a short length sled that has no dedicated mounting for any device. Note: in order to provide clearance underneath the sled for a battery tray, flat head screws and chamfered holes should be used from the bottom of the sled to mount any devices.

Note: the generic sleds are ideal for the the "do it yourself" flyers. SMT Designs will be happy to support your altimeters, devices, etc and make you a custom sled if you ask.

Can be used with SMT Design's 38mm and 54mm bay components

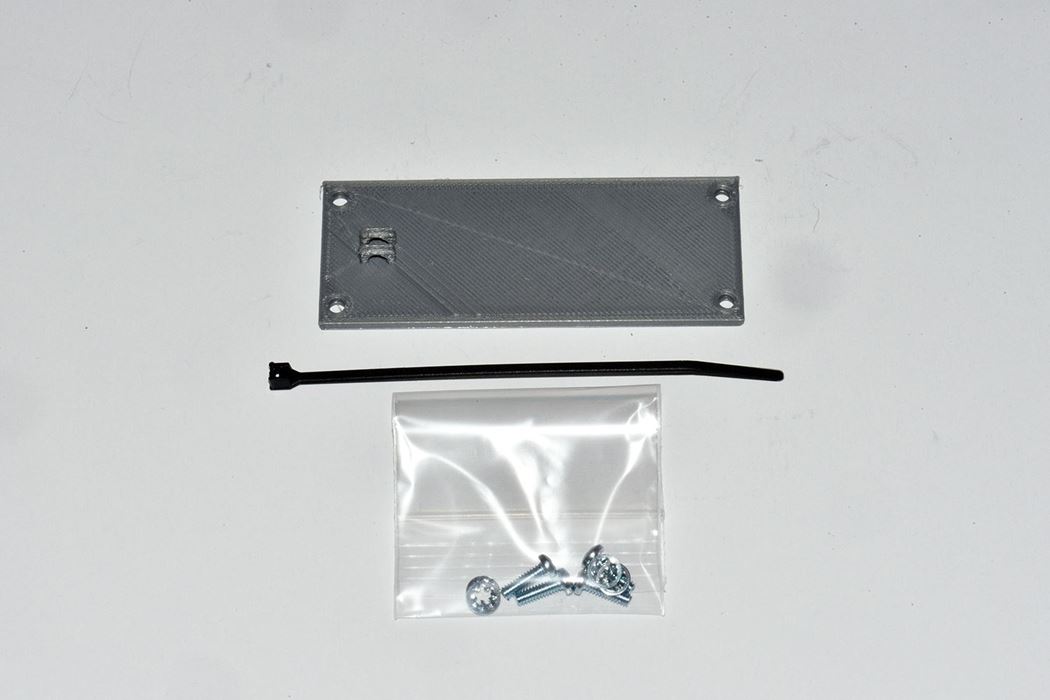

Contents

Sled
four 3/8" 4-40 machine screws
four #4 internal lock washers
one tie wrap

Specifications

Length 85mm
Depth 34mm
Height 3mm
Weight 12gr
Uses 85mm of bay length

Sled Wiring Documentation
