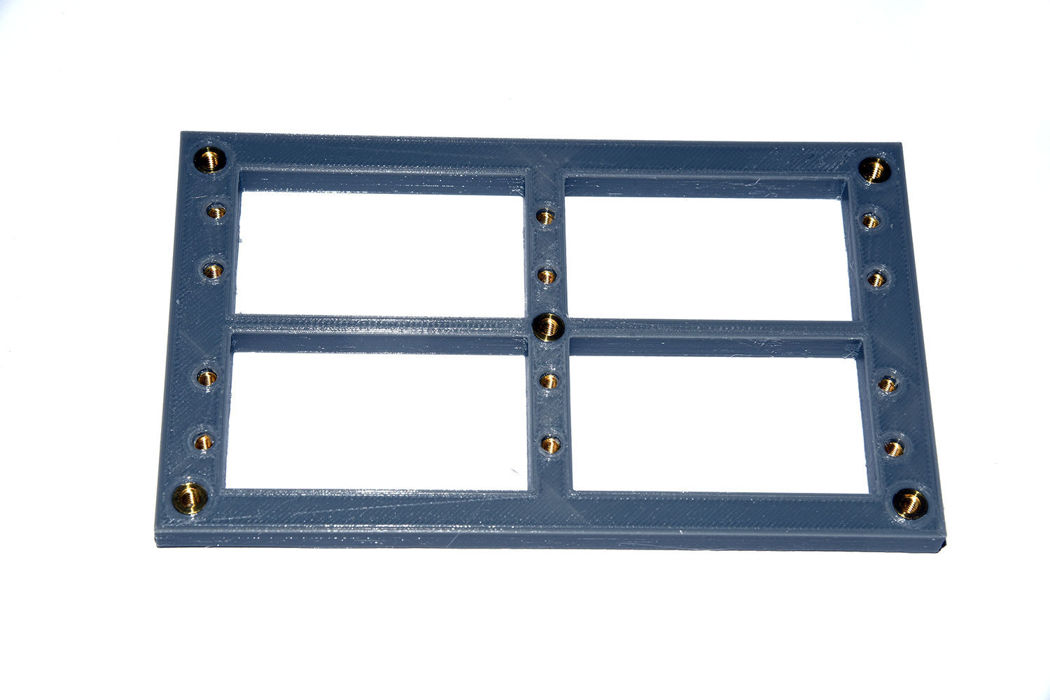

Quad Module Bay Adapter

The Quad Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.
Be the first to review this product
Manufacturer: SMT Designs
SKU: BAM-04117
Shipping date: 5 - 40 days depending on order size
$5.95
Share

The Quad Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.

Contents

  • Quad Module Bay Adapter
  • five 6-32 1/2 inch machine screws
  • five #6 flat washers
  • five #6 internal lock washers

Specifications

  • Length 152.4mm
  • Width 89.5mm
  • Height 8mm
  • Weight 50.5g

Drill Template for bay adapter mounting
