This is a medium length connector sled that has no dedicated mounting for any device. Note: in order to provide clearance underneath the sled for a battery tray, flat head screws and chamfered holes should be used from the bottom of the sled to mount any devices. The sled has a cutout for a DE9 connector.
Note: the generic sleds are ideal for the the "do it yourself" flyers. SMT Designs will be happy to support your altimeters, devices, etc and make you a custom sled if you ask.
- Can be used with SMT Design's 38mm and 54mm bay components
Contents

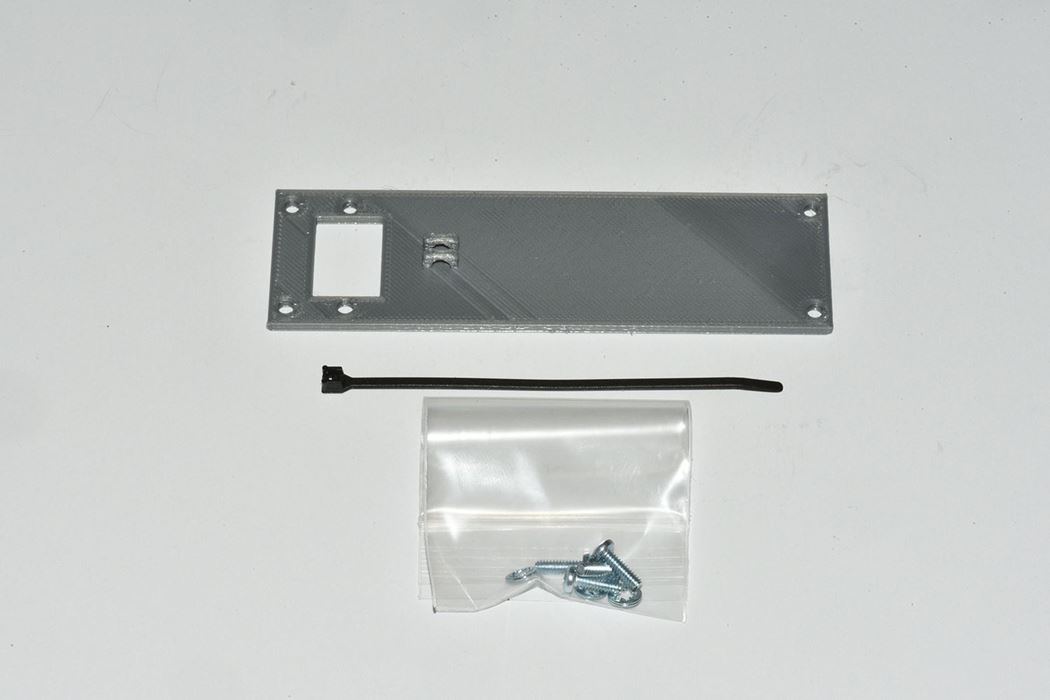

- Sled
- four 3/8" 4-40 machine screws
- four #4 internal lock washers
- one tie wrap
Specifications
- Length 115mm
- Depth 34mm
- Height 3mm
- Weight 15gr
- Uses 115mm of bay length
Sled Wiring Documentation
