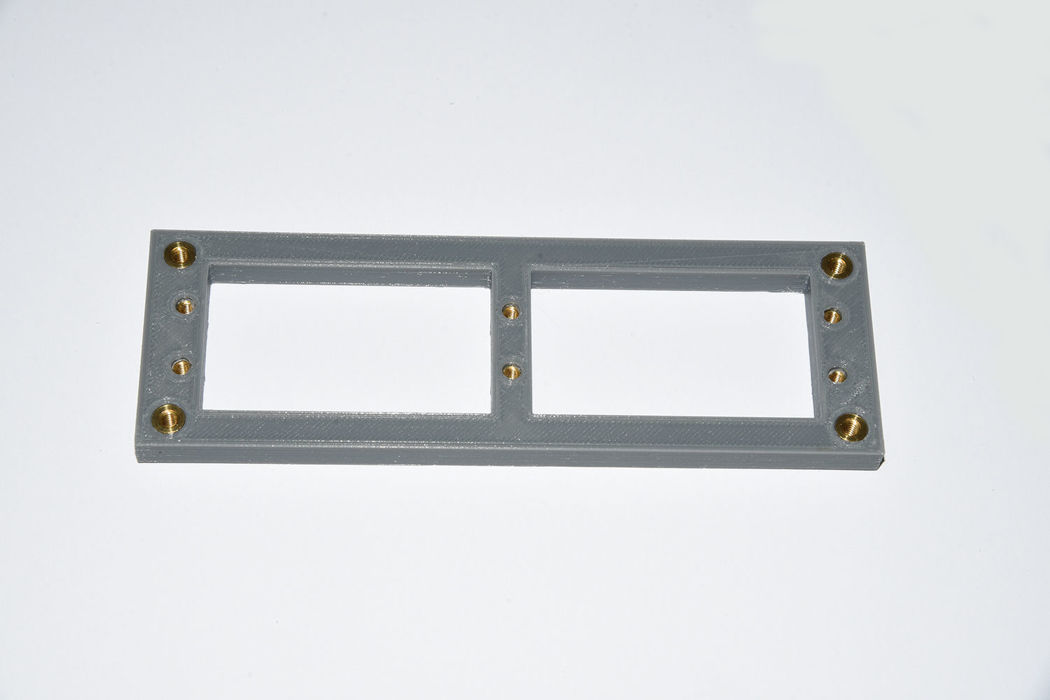

Dual Module Bay Adapter

Dual Module Bay Adapter

The Dual Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.
Be the first to review this product
Manufacturer: SMT Designs
SKU: BAM-02117
Shipping date: 5 - 40 days depending on order size
$3.95
Share

The Dual Module Bay Adapter is designed to be mounted on a traditional bay sled and supply mounting for all of SMT Designs' device and battery carriers, as well as all normal length hybrid platforms.

Contents

  • Dual Module Bay Adapter
  • four 6-32 1/2 inch machine screws
  • four #6 flat washers
  • four #6 internal lock washers

Specifications

  • Length 152.4mm
  • Width 50mm
  • Height 8mm
  • Weight 32.1g

Drill Template for bay adapter mounting
