Platform Connector Wiring Kit

The Platform connector wiring kit includes all the parts necessary to add a DE9 male connector to any of the SMT Designs' parts that have a connector cutout.

Be the first to review this product

Manufacturer: SMT Designs

SKU: SWK-00100

Shipping date: 5 - 40 days depending on order size

$1.95

The Platform connector wiring kit includes all the parts necessary to add a DE9 male connector to any of the SMT Designs' parts that have a connector cutout.

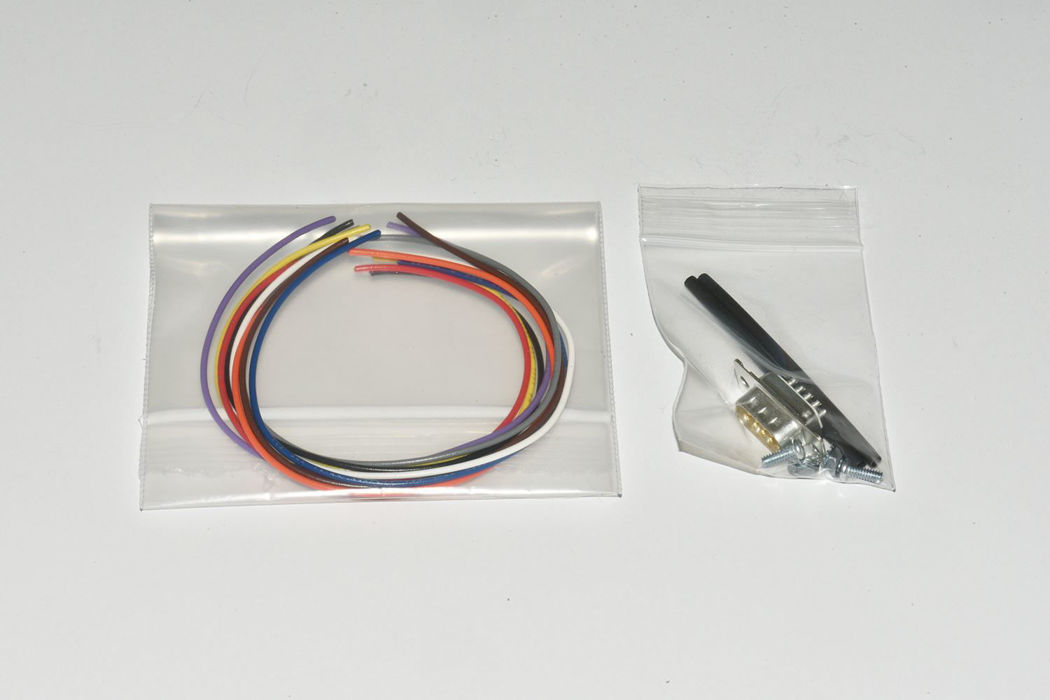

Contents

one DE-9 9 pin male connector
two 3/8" 4-40 machine screws
two 4-40 K-Lock nuts
nine 8" long 22 AWG wires - red, white, black, brown, violet, yellow, orange, blue, and gray
two 2-1/2" x 3/32" heat shrink tubing

Specifications

Weight (kit) 17.2g
Uses 0mm of bay length

Wiring Documentation
