Compact Length MissileWorks RRC2+ Device Platform Kit

This is a compact length device platform for the MissileWorks RRC2+ dual deployment altimeter. There is an optional battery holder available that can be added that sits underneath the platform.

The optional battery holder requires a very specific format for the battery and should be a Venon Fly 30C 2S 300mAh 7.4V LiPo battery,  2S 300mAh Turnigy NanoTech 35-70C Lipo battery, or exact equivalent (38 x 20 x 12 mm / 1.5 x 0.8 x 0.5 in).

The compact platform size was created to be able to make a complete modular bay that would fit into a standard six inch long coupler tube.

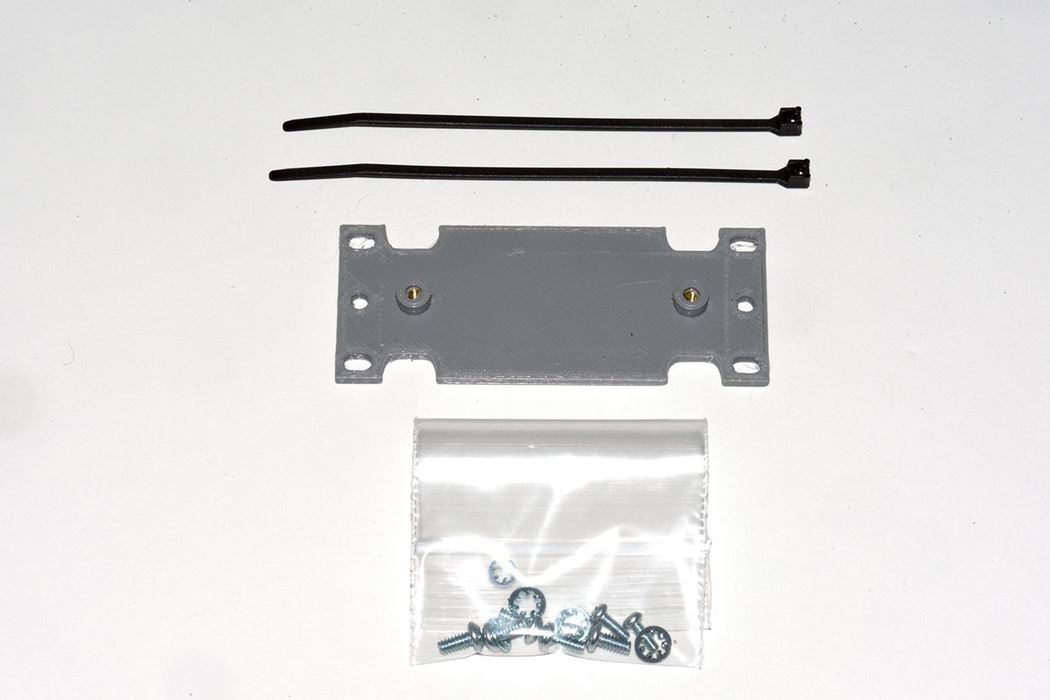

Contents

• Sled
• four 3/8" 4-40 machine screws
• four #4 internal lock washers
• four 3/16" 2-56 machine screws
• four #2 internal lock washers
• two tie wraps

Optional battery holder

• 38mm 2S LiPo battery holder
• battery cable with JST connector

Specifications

• Length 78mm
• Depth 34mm
• Height 7mm
• Weight 15g
• Uses 78mm of bay length
