Compact Length StratoLoggerCF Device Platform Kit

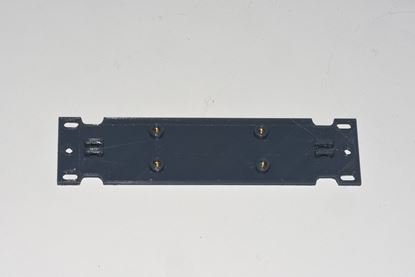

This is a compact length device platform for the PerfectFlite StratoLoggerCF dual deployment altimeter.  There is an optional battery holder available that can be added that sits underneath the platform.

The optional battery holder requires a very specific format for the battery and should be a Venon Fly 30C 2S 300mAh 7.4V LiPo battery,  2S 300mAh Turnigy NanoTech 35-70C Lipo battery, or exact equivalent (38 x 20 x 12 mm / 1.5 x 0.8 x 0.5 in).

The compact platform size was created to be able to make a complete modular bay that would fit into a standard six inch long coupler tube.

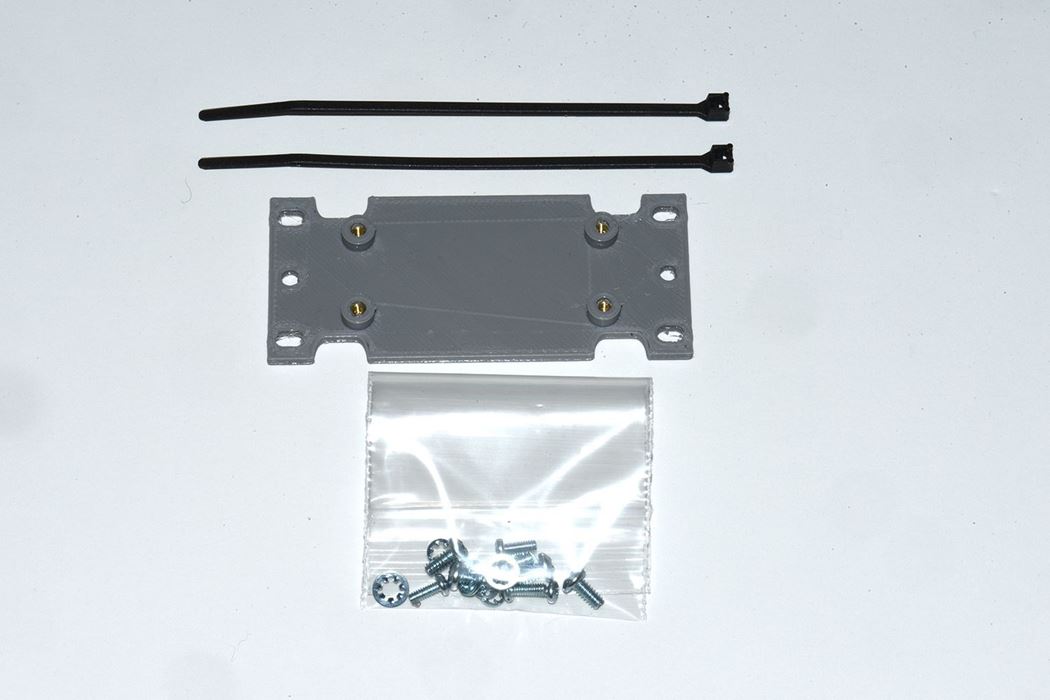

Contents

• Device Platform
• four 3/8" 4-40 machine screws
• four #4 internal lock washers
• four 3/16" 2-56 machine screws
• four #2 internal lock washers
• two tie wraps

Optional battery holder

• 38mm 2S LiPo battery holder
• battery cable with JST connector

Specifications

• Length 78mm
• Depth 34mm
• Height 7mm
• Weight 15g
• Uses 78mm of bay length
