98mm RDD End Cap

The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.

Be the first to review this product

Manufacturer: SMT Designs

SKU: EC-01923

Shipping date: 5 - 40 days depending on order size

Select coupler tube size *
Note: This is not an all encompassing list. Manufacturers do change their
products, add new materials, and can be different between sizes of tubing.
Please measure to assure a proper fit.
Thin Wall (select if wall thickness is 1.1mm or under)
Mach1 BT55, BT60 - 1.1mm
Normal Wall (select if wall thickness is over 1.1mm
and 1.6mm or under)
Blue Tube 2.0 - 1.6mm
LOC Cardboard - 1.52mm
PML Phenolic - 1.5mm
Thick Wall (select if wall thickness is over 1.6mm
and 2.1mm or under)
MadCow - 1.9mm
Rocketry Warehouse (Proline) - 2.1mm
Ultra Thick Wall (select if wall thickness is over
2.1mm and 2.6mm or under)
LOC (larger tubes) - 2.6mm

$5.45

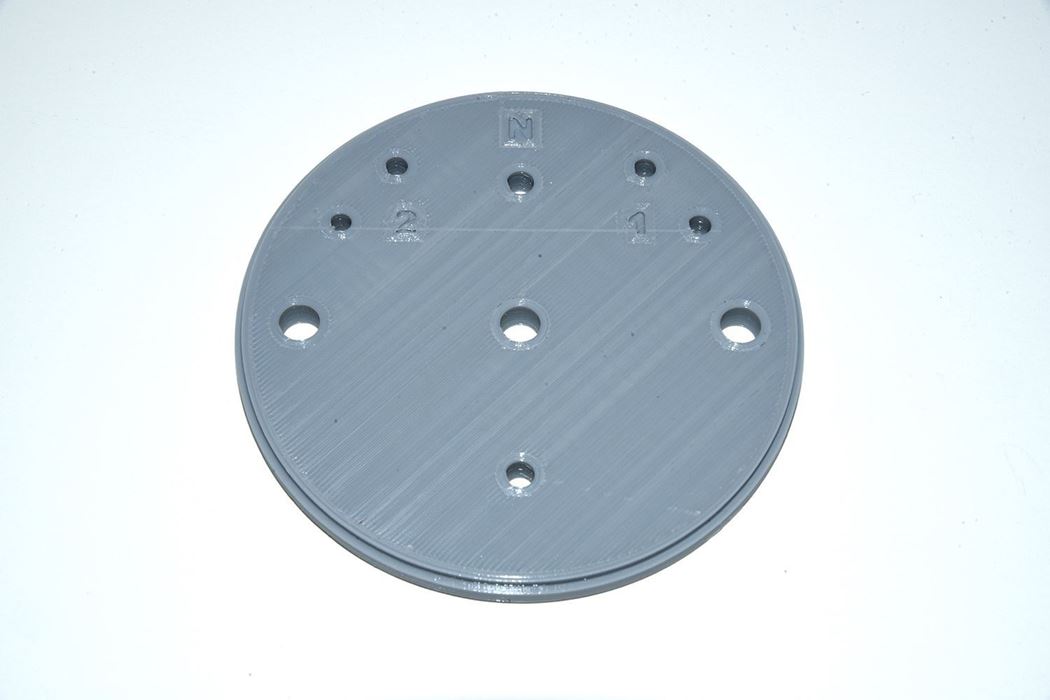

The RDD (Redundant Dual Deploy) End Cap is a 7.1mm (0.28") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring. The cap includes four #6 holes that provide feed through of connections for two charges and two more #8 sized holes for SMT Designs Charge Canisters or Rocket Junkies aluminum charge wells. There are two 1/4" holes that are used for 1/4-20 threaded rod in hybrid bays and there is a central 1/4" hole that allows the use of a 1/4-20 eye bolt if desired. The end cap comes in normal wall (1.57mm/0.062" Blue Tube/MadCow) sizes.

Contents

one RDD end cap

Specifications

Outer diameter 98mm, shoulder diameter 95.4mm
Thickness 7.1mm
Weight 61.6g/2.17oz
Uses 2.38mm of bay length
