75mm RDD End Cap

The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring.

Be the first to review this product

Manufacturer: SMT Designs

SKU: EC-01723

Shipping date: 5 - 40 days depending on order size

Select coupler tube size *
Note: This is not an all encompassing list. Manufacturers do change their
products, add new materials, and can be different between sizes of tubing.
Please measure to assure a proper fit.
Thin Wall (select if wall thickness is 1.1mm or under)
Mach1 BT55, BT60 - 1.1mm
Normal Wall (select if wall thickness is over 1.1mm
and 1.6mm or under)
Blue Tube 2.0 - 1.6mm
LOC Cardboard - 1.52mm
PML Phenolic - 1.5mm
Thick Wall (select if wall thickness is over 1.6mm
and 2.1mm or under)
MadCow - 1.9mm
Rocketry Warehouse (Proline) - 2.1mm
Ultra Thick Wall (select if wall thickness is over
2.1mm and 2.6mm or under)
LOC (larger tubes) - 2.6mm

$4.45

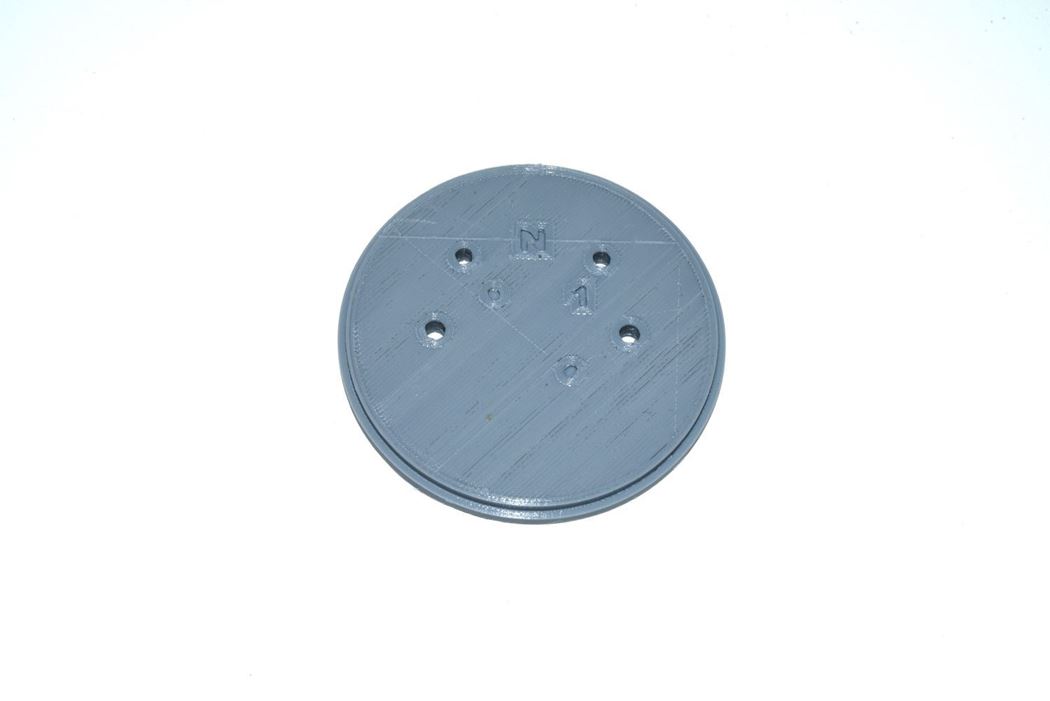

The RDD (Redundant Dual Deploy) End Cap is a 5.9mm (0.23") thick cap with a 2.38mm (3/32") shoulder. The end cap is used on the removable end of a bay and attaches to a mounting ring. The cap includes four holes that provide feed through of connections for attachment of two charge canisters and two charges. There are two additional holes that are used for threaded rod in hybrid bays or a metal reinforced shock cord tie for modular bays. The end cap comes in thin wall (1.15mm/0.045" Mach1) and normal wall (1.57mm/0.062" Blue Tube/MadCow) sizes.

Contents

one RDD end cap

Specifications

Outer diameter 75.8mm, shoulder diameter 73.5mm/72.2mm
Thickness 5.9mm
Weight 26.2g/0.92oz
Uses 2.38mm of bay length
