54mm CT Bay Template

The 54mm CT Bay Template is used to mark holes when constructing a coupler tube bay.

SKU: CTBT-00551

Shipping date: 5 - 40 days depending on order size

Tube Wall Thickness *
Note: This is not an all encompassing list. Manufacturers do change their
products, add new materials, and can be different between sizes of tubing.
Please measure to assure a proper fit.
Thin Wall (select if wall thickness is 1.1mm or under)
Mach1 BT55, BT60 - 1.1mm
Normal Wall (select if wall thickness is over 1.1mm
and 1.6mm or under)
Blue Tube 2.0 - 1.6mm
LOC Cardboard - 1.52mm
PML Phenolic - 1.5mm
Thick Wall (select if wall thickness is over 1.6mm
and 2.1mm or under)
MadCow - 1.9mm
Rocketry Warehouse (Proline) - 2.1mm
Ultra Thick Wall (select if wall thickness is over
2.1mm and 2.6mm or under)
LOC (larger tubes) - 2.6mm

Thin Wall
Normal Wall
Heavy
Ultra Heavy

$3.95

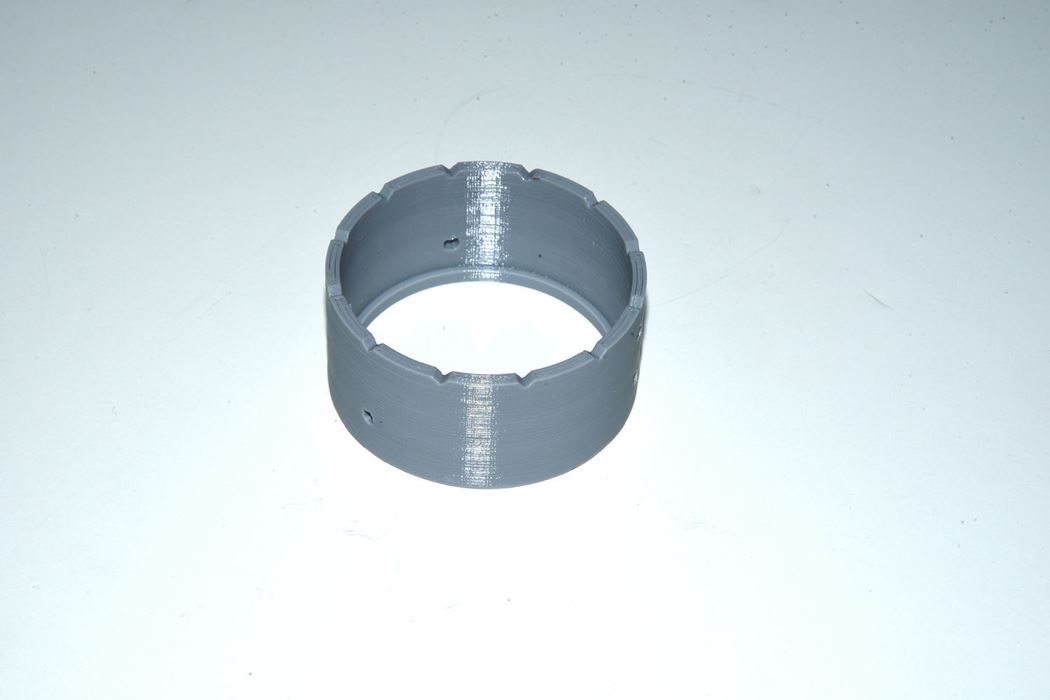

The 54mm CT Bay Template is used to mark holes when constructing a coupler tube bay. There are holes at 120 degree intervals at 6.35mm (1/4 inch) from the end of the coupler tube for bay mounting. There are two additional holes at the same distance to locate one or two arming switch locations. Finally, there is a single hole at 18.05mm (3/4 inch) for a vent hole if using the bay for deployment or air pressure monitoring.

Contents

One 54mm CT Bay Template

Specifications

Diameter 60mm
Length 28.4mm
Weight 15g
