4 Post Feedthru Kit

The 4 post feedthru supplies an insulated connection from the internal electronics bay to the outside for igniters, electric matches, or other electronics.

Be the first to review this product

Manufacturer: SMT Designs

SKU: DF4P-00105

Shipping date: 5 - 40 days depending on order size

$3.45

The 4 post feedthru supplies an insulated connection from the internal electronics bay to the outside for igniters, electric matches, or other electronics The feedthru can be mounted by following the drill template in the General Outlines file below and only requires a 3/8" drill bit and a 1/8" drill bit.

The feedthru mounts with 4-40 hardware (not included).

Contents

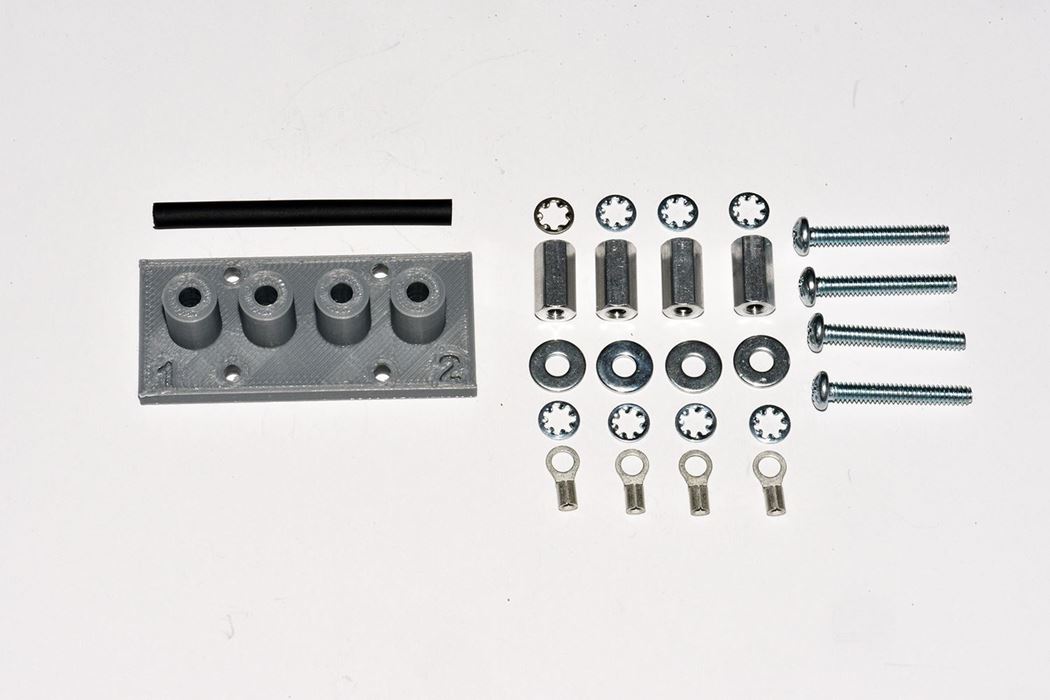

Feedthru
four 1/2 inch long 6-32 aluminum hex spacers
four 1" 6-32 machine screws
four 3/16" 6-32 machine screws
four #6 flat washers
eight #6 internal lock washers
four #6 18-22 AWG crimp terminals
one 2" long by 1/8" heat shrink tubing

Specifications

Length 57.2mm
Depth 23mm
Height (total) 17mm (post) 13mm (assembled) 36mm
Weight (assembled) 26g

Feedthru Kit Assembly Instructions

Drill Template for feedthru mounting

Customers who bought this item also bought

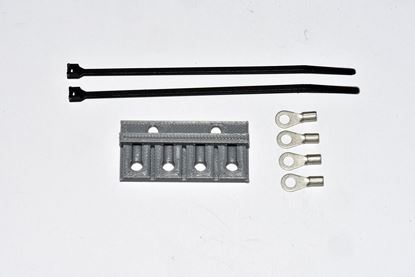

4 Terminal Mating Connector Kit

CM4T-00108

The 4 terminal mating connector kit is designed to be used inside of a more traditional electronics bay.

$1.45

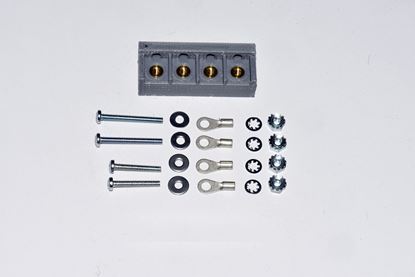

4 Terminal Through Mount Connector Block Kit

CB4TM-00106

The 4 terminal connector block kit is designed to be used inside of a more traditional electronics bay.

$2.45

2 Post Feedthru Kit

DF2P-00104

The 2 post feedthru supplies an insulated part so wiring can transition from inside an electronics bay to the outside for connection to igniters, electric matches, or other electronics.

$2.45

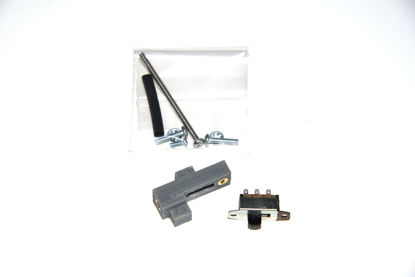

Low Profile Switch Kit
