38mm FeatherWeight GPS/Raven3 Single Deploy Nosecone Bay Kit

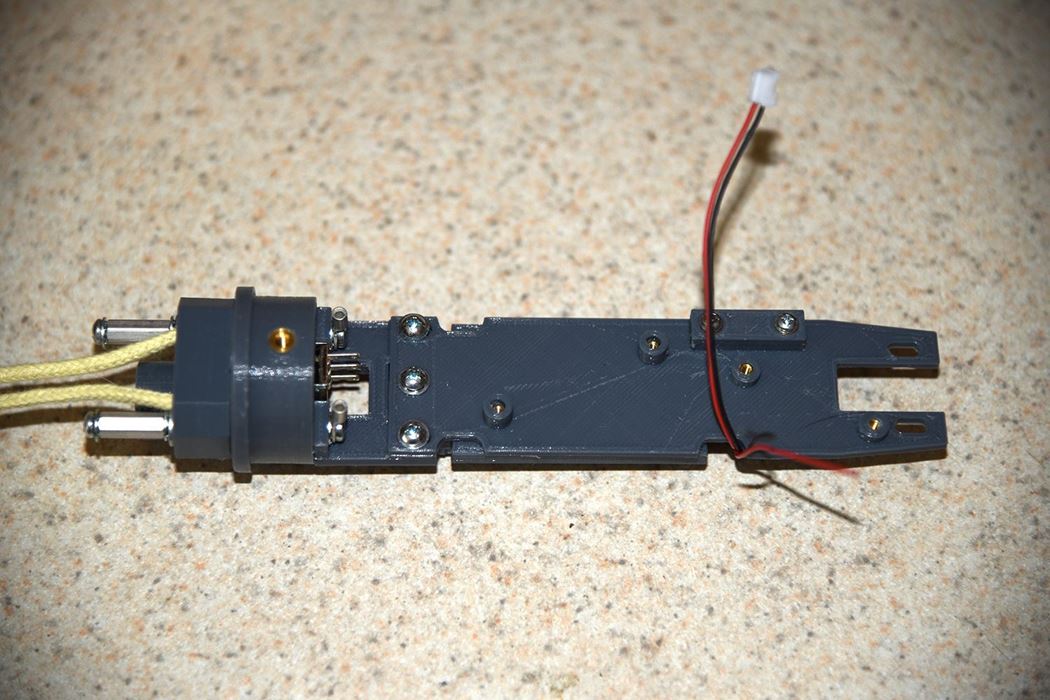

The nosecone bay kit is a complete set of SMT Designs parts that can be assembled into a fully functional nosecone bay specifically for the FeatherWeight GPS Tracker and Raven3 Altimeter (customer supplies coupler tube, electronic devices, and batteries).

The electronics bay is completely self-contained with an accessible power switch installed in the cap at the rear of the bay. Note: the power switch is for arming just the altimeter before launch. The tracker power is controlled by the switch installed on the device. The cap also supplies mounting for a 1.5 gram charge canister/kevlar cord tie plate.

Supported devices

• Featherweight GPS with 400mAh 1S LiPo battery
• FeatherWeight Raven3 with a 130mAh or 160mAh 1S LiPo battery

Options

• thin call coupler for nosecone that use a separate tube for the nosecone shoulder
• thick wall coupler such as MadCow coupler tube or Wildman filament wound fiberglass nosecones

Mounting to the nosecone shoulder is accomplished by three 4-40 threaded inserts at 120 spacing around the perimeter of the cap. One screw position is also the arming switch which can be installed at the launch pad by just raising the nosecone. A vent hole through the coupler and airframe can be added just above the arming screw.

Contents

• one 38mm Power switch cap
• device platform for the devices
• battery holder and cables
• wire, kevlar cord, and all necessary hardware to assemble the bay
• one 4-40 flat head arming screw
• two 4-40 flat head screws for mounting the bay in the end of the coupler tube

Customer Supplied Parts

1. One 38mm thin wall 38mm coupler
2. One FeatherWeight GPS Tracker
3. One FeatherWeight Raven3 Altimeter
4. One 400mAh 1S LiPo battery
5. One 130 or 160mAh 1S LiPo battery
